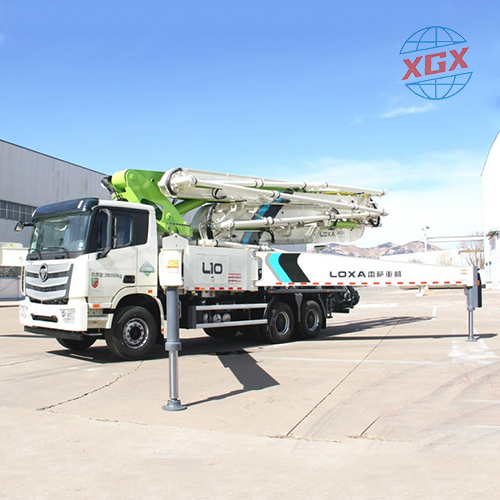

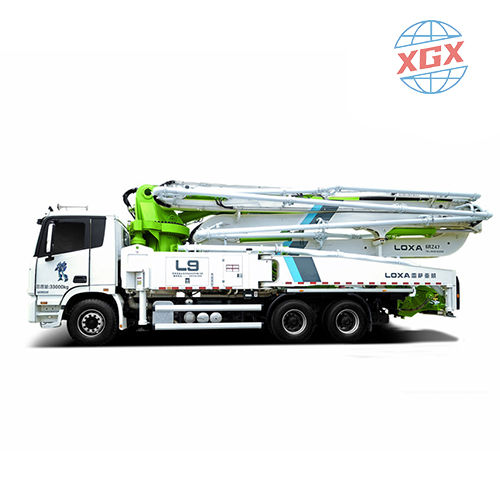

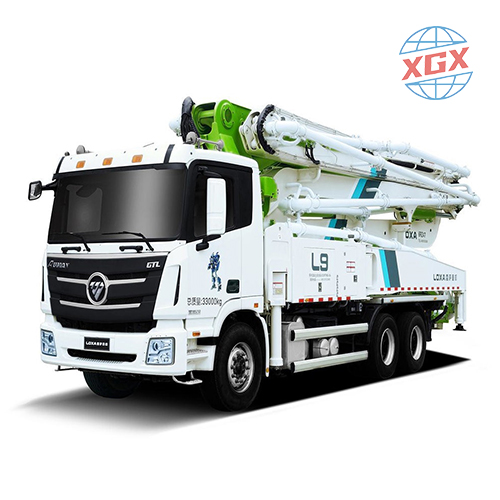

Foton Resa BJ5289THB-XD (L9-38m) pump truck
Foton Resa BJ5289THB-XD (L9-38m) pump truck
Foton Resa BJ5289THB-XD (L9-38m) pump truck
Foton Resa BJ5289THB-XD (L9-38m) pump truck
Foton Resa BJ5289THB-XD (L9-38m) pump truck
Foton Resa BJ5289THB-XD (L9-38m) pump truck
Foton Resa BJ5289THB-XD (L9-38m) pump truck
Foton Resa BJ5289THB-XD (L9-38m) pump truck

Foton Resa BJ5289THB-XD (L9-38m) pump truck

Foton Resa BJ5289THB-XD (L9-38m) pump truck
Similar products
Parameter configuration
Technical parameters of Resa L9 pump truck L938M
Parameter Type Unit BJ5289THB-XD
Vehicle parameters Dimensions mm 12500×2530×3900
Total mass kg 28490
Maximum driving speed km/h 80
Maximum climbing grade % 40
Chassis parameters Drive type   6x4
Body   GTL
Engine Model   Cummins ISGe5-400
Type   Inline 6 cylinder water-cooled
Displacement L 11.8
Emission standards   Country V
Transmission Type   9JSD220TA
Number of forward gears   9 Gears
Boom leg parameters Vertical height of boom m 38
Horizontal length of boom m 33.5
Vertical depth of boom m 23.7
Minimum unfolded height m 9.1
Turntable rotation angle   ±360°
Front span mm 6200
Span mm 7300
Back span mm 8900
Pumping system parameters Maximum theoretical pumping capacity m³/h 145
Maximum pumping pressure (MPa) MPa 7.5
Theoretical pumping times Times/minute 24
Inner diameter of conveying cylinder mm 260
Delivery cylinder stroke mm 1900
Hydraulic system / Closed
System oil pressure MPa 35
Hydraulic oil tank capacity L 500
Water tank capacity L 400
Delivery pipe diameter mm 125
End hose diameter mm 125
End hose length mm 3000


Note: The model parameter configuration and other information on this page is for reference only. The actual model parameter configuration and other information are subject to in-store sales. The right of interpretation belongs to the manufacturer. For more detailed parameter description, please contact us!
Question & Answers
Can you do custom for us?
Yes , We do OEM and ODM service. We have good experience to understand what buyers like and arrange development .
Can you handle small orders ?
Of course, in order to support clients' business, we will prepare some stock for many hot sale model in advance, so that we can sell small quantity products to you each time. We can also handle small custom orders.
How to pay?
You can pay by L/C, D/A, D/P, T/T, Western Union, PayPal, Bank transfer, Alibaba Sinosure orders, etc.
Are there any other models?
We have other models.
May I visit your factory?
Sure, welcome any time. We can also pick you up at the airport and station.
How long will it be shipped?
We will arrange shipment as soon as possible based on the quantity of your order, and common models can be shipped within 15-30 days.
Henan Xinguoxing Trading Co., Ltd. focuses on selling second-hand (used) construction machinery and special vehicles of various brands.
Generally, it will take 10-15 days after receiving your advance payment. The delivery time depends on the items and your order quantity.
