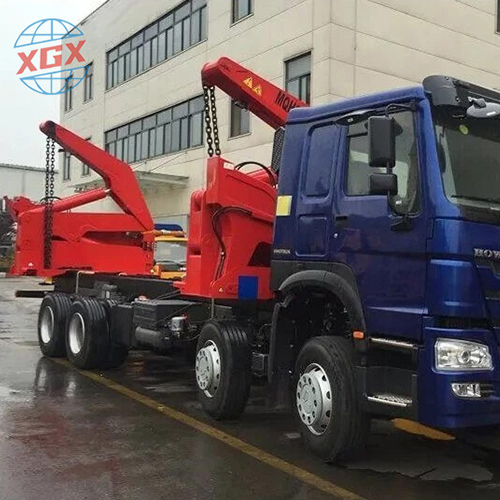

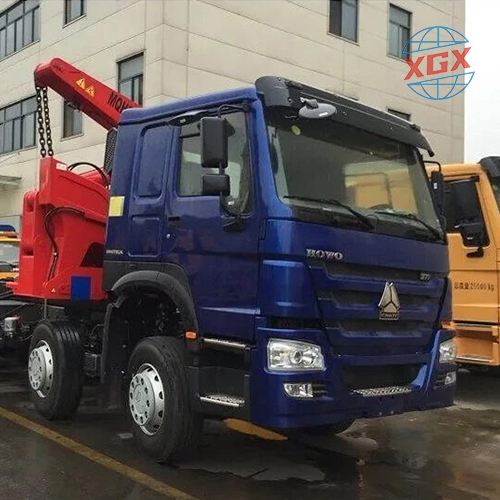

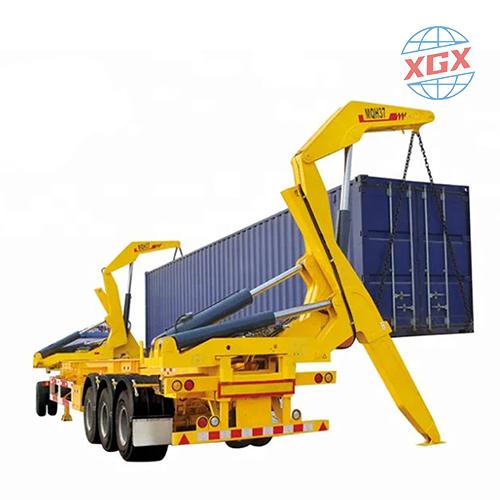

China Container Handling Side Crane With Chassis (MQH37A)
China Container Handling Side Crane With Chassis (MQH37A)
China Container Handling Side Crane With Chassis (MQH37A)
China Container Handling Side Crane With Chassis (MQH37A)
China Container Handling Side Crane With Chassis (MQH37A)
China Container Handling Side Crane With Chassis (MQH37A)
China Container Handling Side Crane With Chassis (MQH37A)
China Container Handling Side Crane With Chassis (MQH37A)

China Container Handling Side Crane With Chassis (MQH37A)

China Container Handling Side Crane With Chassis (MQH37A)
Similar products
Parameter configuration
  Model M QH37A type
  Maximum lifting capacity 3 7 ton
  Maximum working range   4000mm
  Specification   International Organization for Standardization (ISO)
  Origin   China
  Production capacity   50 sets/month
Type   Straight arm
  Maximum stabilizer outward   3200mm
  Transport packages   Bare
  Trademark   Gospel
  Customs code 8705109100

Item Unit Crane model
Specification Maximum lifting capacity kg 37000
Maximum stabilizer outward mm 3200
Maximum working range mm 4000
Overall height mm 2490
Too wide mm 2500
Extra long mm 1020
Maximum hydraulic system pressure MPa 28
Weight kg 7000
Power system specifications Motor manufacturer
Engine model   V2403-M-DI-E3B-CSL-1 type
Total displacement L 2.434
Brake horsepower kW/rev/min 36.5/2600
Max torque/speed N ·m/rev 158.6N ·m/1600
Minimum idle speed Speed 1050~1150 year
Maximum idle speed Speed 2820
Dry weight kg 185
Supply voltage V 12
Exhaust emission regulations   EU Phase III
Main technical parameters of semi-trailer Type / Frame
Dimensions mm 14100×2480*(≤1510)
Maximum gross weight kg 52000
Curb weight kg 7200
Payload mass kg 44800
Number of wheels /
Axle transmission mm 8000+1350+1350
Weight kg 7000
Axle load kg -/24000
Maximum kingpin mass kg 16000
ABS Company   Yes
Front overhang/rear overhang mm -/2370
Question & Answers
Can you do custom for us?
Yes , We do OEM and ODM service. We have good experience to understand what buyers like and arrange development .
Can you handle small orders ?
Of course, in order to support clients' business, we will prepare some stock for many hot sale model in advance, so that we can sell small quantity products to you each time. We can also handle small custom orders.
How to pay?
You can pay by L/C, D/A, D/P, T/T, Western Union, PayPal, Bank transfer, Alibaba Sinosure orders, etc.
Are there any other models?
We have other models.
May I visit your factory?
Sure, welcome any time. We can also pick you up at the airport and station.
How long will it be shipped?
We will arrange shipment as soon as possible based on the quantity of your order, and common models can be shipped within 15-30 days.
